AFDS module and FDS-SYS4X


Nieuw onderwerp plaatsen   Reageren    flyengravity.com - build your own jetliner Forumindex -> Electronics
Vorige onderwerp :: Volgende onderwerp
Auteur Bericht
assrar
Flight Captain

BerichtGeplaatst: Di Nov 13, 2012 12:47 pm    Onderwerp: AFDS module and FDS-SYS4X Reageren met citaat

He Every budy,

1-AFDS module
2-Fire Warning Switch
3-Master Caution Switch
4-SIXPACK recall annunciator for Captain side
5-SIXPACK recall annunciator for First officer

Does this stuff sport FDS-SYS4X from flightdeck solutions?
Because i'm planning to buy them. Very Happy

Best Regards
assrar
Terug naar boven
Profiel bekijken Stuur privébericht
Engravity_Support
Site Admin


BerichtGeplaatst: Ma Dec 03, 2012 10:22 am    Onderwerp: Reageren met citaat

is the sys4 common annode or common cathode ?
_________________
www.flyengravity.com
Build your own jetliner
Terug naar boven
Profiel bekijken Stuur privébericht
assrar
Flight Captain

BerichtGeplaatst: Ma Dec 17, 2012 8:05 am    Onderwerp: Reageren met citaat

Hi ,

In fact, I do not know, but the catalog describes this feature as follows,

When wiring LEDís each 8 LEDís have a common cathode (negative) line which goes to
the black wire in the bundle. The 8 other red lines are the anode (positive) connections
for the LEDís. As mentioned earlier in the switch configuration section it is important to
only connect the cathodes for that connector to the black line in that connector. Each
of the connectors has it own common that gets connected to each of the eight
switches.

Catalog link is ,
http://www.flightdecksolutions.com/pcupload/FDS-SYS-MAN-V5.pdf

Thanks
assrar
Terug naar boven
Profiel bekijken Stuur privébericht
Engravity_Support
Site Admin


BerichtGeplaatst: Di Dec 18, 2012 4:31 pm    Onderwerp: Reageren met citaat

according to your quote above the fds board uses a common cathode.

This means the AFDS module should work with the fds board, however, this has not been tested by us.
_________________
www.flyengravity.com
Build your own jetliner
Terug naar boven
Profiel bekijken Stuur privébericht
assrar
Flight Captain

BerichtGeplaatst: Di Dec 18, 2012 5:41 pm    Onderwerp: Reageren met citaat

Hi,

Thanks for the reply, and i will test it.

Best Regards
assrar
Terug naar boven
Profiel bekijken Stuur privébericht
assrar
Flight Captain

BerichtGeplaatst: Vr Jun 07, 2013 2:47 am    Onderwerp: Reageren met citaat

the one i do have not working at all Crying or Very sad
Terug naar boven
Profiel bekijken Stuur privébericht
Engravity_Support
Site Admin


BerichtGeplaatst: Vr Jun 07, 2013 9:22 am    Onderwerp: Reageren met citaat

does it work if you power the unit directly with 12 volts and power just one of the leds with a ground and a 5 volts line ?
(not using any software or interface board, but direct power from a power source to the afds unit (12 volts) and one of the inputs (anything between 3 and 12 volts, but try 3 or 5).

This way we can rule out any problems with your interface, wiring, or software.
If it still doesnt light we will have it returned.
_________________
www.flyengravity.com
Build your own jetliner
Terug naar boven
Profiel bekijken Stuur privébericht
assrar
Flight Captain

BerichtGeplaatst: Vr Jun 07, 2013 10:11 am    Onderwerp: Reageren met citaat

Hi Engravity_Support ,

Well i'm sorry to tell you nothing works. Embarassed
What steps for return it back? Arrow

Thanks
assrar
Terug naar boven
Profiel bekijken Stuur privébericht
Engravity_Support
Site Admin


BerichtGeplaatst: Vr Jun 07, 2013 10:31 am    Onderwerp: Reageren met citaat

you have tried direct input of a powersource as adviced and it does not work ?

contact robert at the info@ email adress for a return form !
_________________
www.flyengravity.com
Build your own jetliner
Terug naar boven
Profiel bekijken Stuur privébericht
Engravity_Support
Site Admin


BerichtGeplaatst: Vr Jun 07, 2013 10:36 am    Onderwerp: Reageren met citaat

just to double check:

What terminals did you use to test with direct power input ?
_________________
www.flyengravity.com
Build your own jetliner
Terug naar boven
Profiel bekijken Stuur privébericht
assrar
Flight Captain

BerichtGeplaatst: Vr Jun 07, 2013 10:53 am    Onderwerp: Reageren met citaat

Hi,

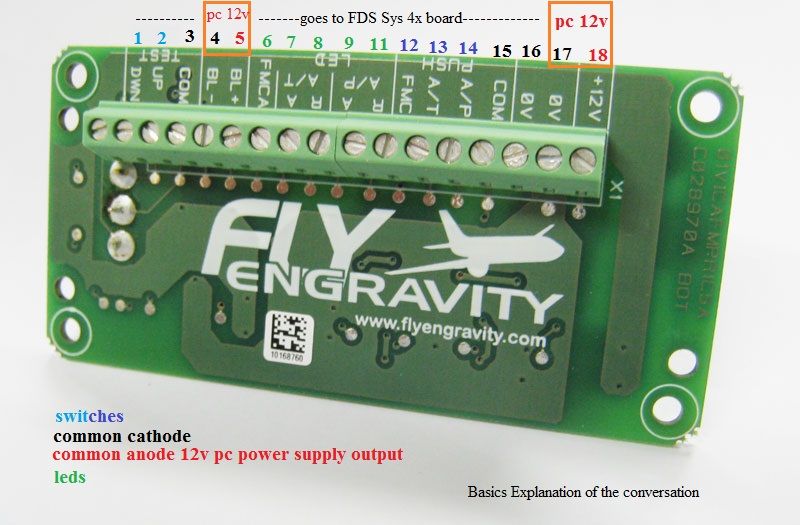

as in the picture i used to simplify the connection

8---16

DC 5v and 3v

but still nothing

assrar
Terug naar boven
Profiel bekijken Stuur privébericht
Engravity_Support
Site Admin


BerichtGeplaatst: Zo Jun 09, 2013 12:27 pm    Onderwerp: Reageren met citaat

Can you specify more detailed where you connect what ?

So, catode to what terminal, anode to what terminal ?

If you say i wired 8-16 i can not see if you did it wrong. Its not enough info !

Also i asked you to wire just one of the leds from an individual source (no sysboard, no software, just power to one led and to the 12 volt input of the module).
Did you do that ?

without its own 12 volts power line the afds module will not work correctly,
_________________
www.flyengravity.com
Build your own jetliner
Terug naar boven
Profiel bekijken Stuur privébericht
assrar
Flight Captain

BerichtGeplaatst: Zo Jun 09, 2013 10:13 pm    Onderwerp: Reageren met citaat

Hi dear sir,

Just for the test as you say i use dedicated 12v and connected as the 2 pictures i got these results

1- yes ok just for the SMD


2- No ok


The dual led pushbuttons for the A/p A/T FMC not worcking but the test toggle switch and all the pushbuttons even on board SMD leds are ok.

If you have a simple diagram just show it to me and i will follow you,and also you can use the numbers on the picture to demonstrate the connection diagram.


Best Regards
assrar
